飞控Teeny1S F3集成Betaflight OSD 1S供电+ 电调Teeny1S四合一 Blheli_S 6A电调.
缩小的Omnibus F3飞塔,集成Betaflight OSD 搭载MPU6000 加速度 响应更快,支持DSHOT,Oneshot,配合16mmx16mm BLHELI_S 四合一电调 1S锂电平台下的穿越小飞塔,重量轻,性能可靠,是组装1S无刷穿越套机的合适配件.
Specification:

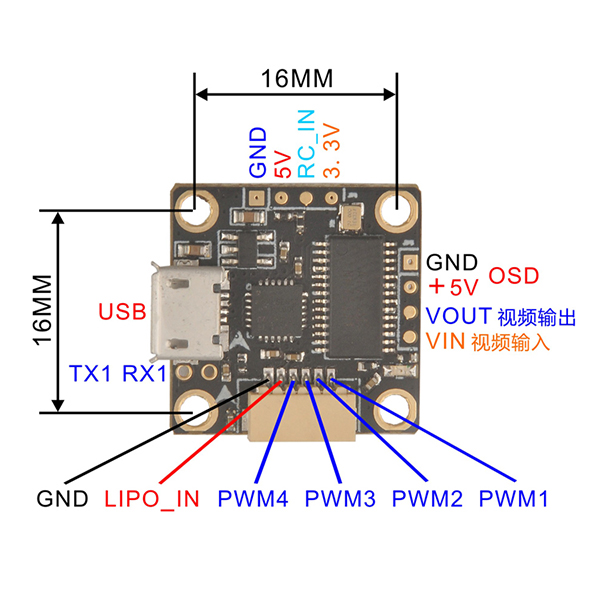

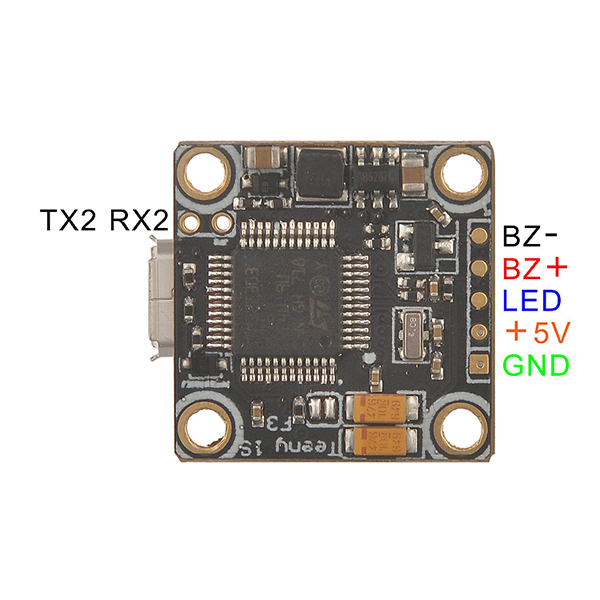

Flight controller
Item name: Teeny1s F3 flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 2.0g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.7_OMNIBUS
Built-in SESC: 5V/0.5A
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 1S lipo battery (3.3V-4.35V)
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

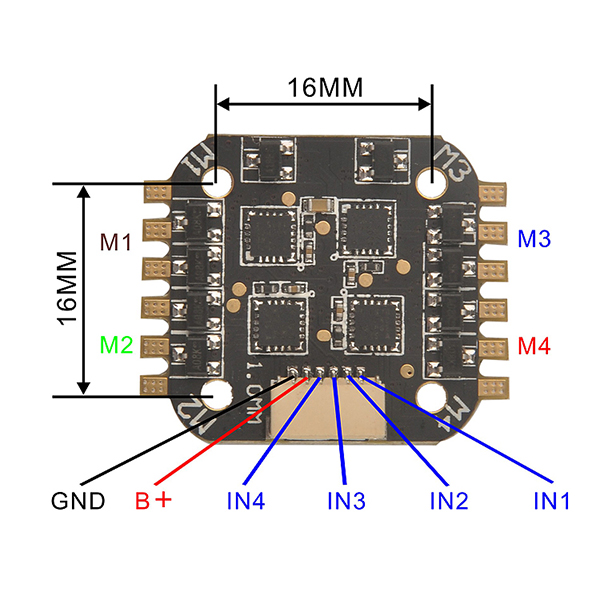

ESC
Item name: Teeny1s 4 In 1 6A BLHeli_S ESC
Size: 23x28mm (includes solder pad)
Mounting holes: 16x16mm, φ2mm
Weight: 2g
Input voltage: 1S lipo or 1S HV-LIPO
Con. Current: 6A
Peak Current: 7A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB10F8G
BEC: NO
Driver: 3 in 1 MOS
Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM
Features:
-Support programmable LED_Strip
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Default Dshot600 ready
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP solder pin
![](//www.mxzdy.com/img_sub/rc_img/17/07/12791-t1.jpg)
![](//www.mxzdy.com/img_sub/rc_img/17/07/12791-t2.jpg)
![](//www.mxzdy.com/img_sub/rc_img/17/07/12792-t1.jpg)
