关键词: 新款  Omini  F7  Pro  飞控  Betaflight  3.2.0固件  内置OSD  BEC

新款 Omini F7 Pro 飞控 Betaflight 3.2.0固件 / 内置OSD BEC

技术参数:
Features:
- STM32 F745 MCU - faster than the current F3 and F4 processors
- Two gyros on the flight controller: an MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
- Built in betaflight OSD
- Built in Current sensor
- Built in 5V LC-power filter
- Built in Barometer
- D-shot esc Support(Dshot600 Ready)

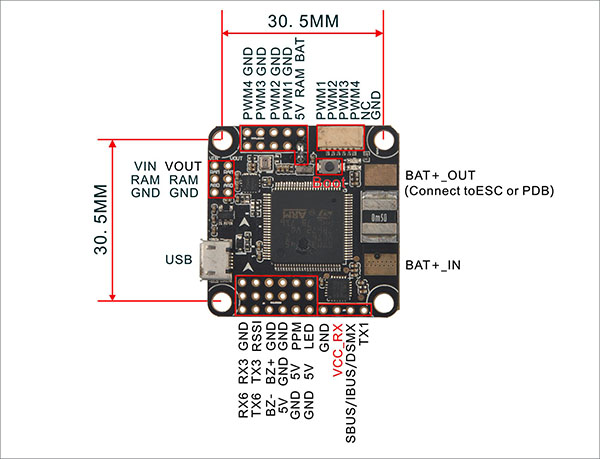

- 36x36mm, mount holes 30.5x30.5mm
- Weight: 6.6g
- SD card reader for recording black box data (SD card not included)
- Supports 2-4s natively, 5-6s with 220uf 35V capacitor
- 5v/1A regulator

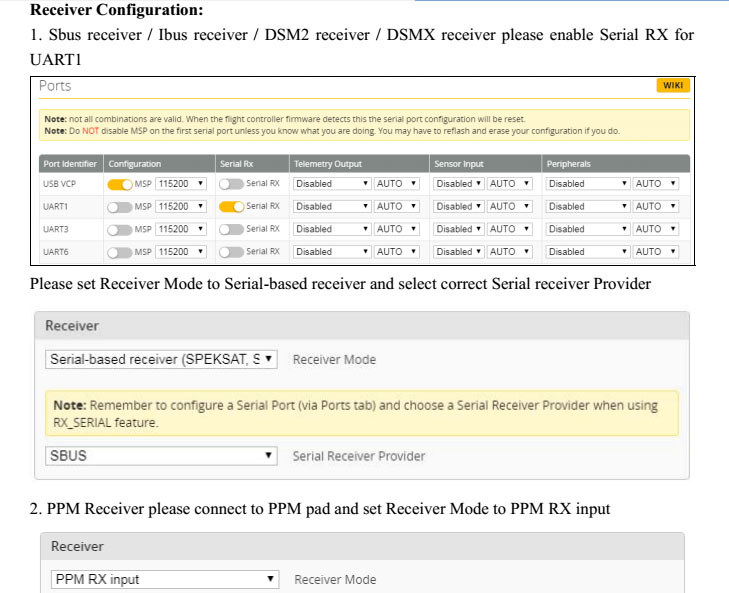

- Support PPM/SBUS/IBUS/DSM2/DSMX protocol receiver
- LED_strip ready pin headers
- Buzzer ready pin headers
- Smart port ready Pin headers
- Compatible 4 in 1 ESC with JST-SH 1.0 6pin housing
- Firmware version: Betaflight 3.2.0 OmnibusF7


附  件:
1 x 新款 Omini F7 Pro 飞控
4 x 尼龙柱
4 x 螺丝
4 x 螺母
3 x 插针
