商品描述:
编号:FD-802上架/更新:2017-01-04/2017-01-04
Feastures:
• Compatible with FRSKY ACCST
• Compatible with X9D(Plus)DJT/DFT/DHT
• Small and light weight
• Suit for Eachine Tiny QX90, QX80 Micro Racing Quadcopter.
• Telemetry: RSSI, 1S-3S voltage (A1), 1S-3S voltage (A2)

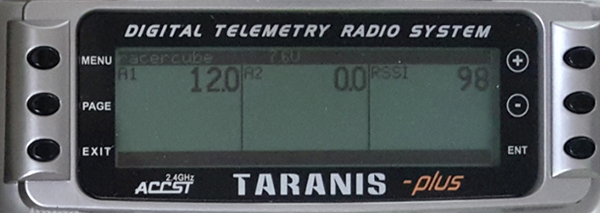

RSSI and Telemetry
A1/A2 Voltage detector , RSSI
![](http://www.mxzdy.com/img_sub/rc_img/17/01/12343-t1.jpg)

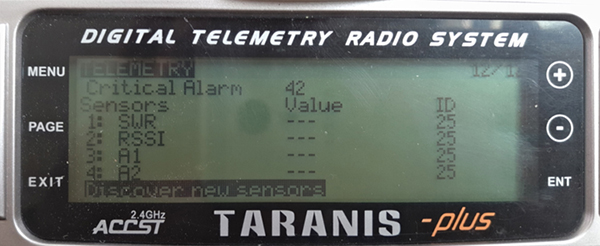

After binding successful, turn on the transmitter ,move to the option TELEMETRY, then click “Discover new sensors”
![](http://www.mxzdy.com/img_sub/rc_img/17/01/12343-t2.jpg)

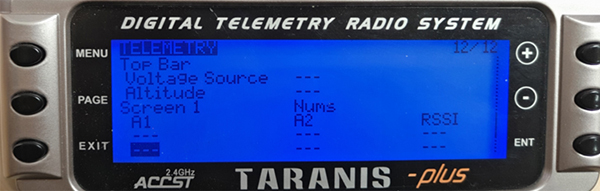

Set Screen to show the Telemetry info
![](http://www.mxzdy.com/img_sub/rc_img/17/01/12343-t3.jpg)
技术参数:
产品名称:迷你8通双向回传接收机 FD802 / 兼容Frsky X9D 带功放厂家编号:FD802
工作模式:D8
输出:PPM/SBUS
通道:8
净重:3g
尺寸:25*12mm
