关键词： Matek  飞控  F405-WING  带OSD  飞翼可用

技术参数：

FC Specifications

- MCU: 168MHz STM32F405
- IMU: MPU6000 accelerometer/gyro (SPI)
- Baro: BMP280 (I2C)
- OSD: INAV OSD w/ AT7456E chip
- Blackbox: MicroSD card slot (SD/SDHC)
- VCP & 6x UARTs
- 2x Motors, 7x Servos outputs
- 2x I2C
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- Built in inverter for SBUS input (UART2-RX)
- PPM/UART Shared: UART2-RX
- SoftSerial on TX2 pad
- Battery Voltage Sensor: 1:10 (Scale 1100)
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes

FC Firmware

- INAV Flight
- Target: MATEKF405SE

PDB

- Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
- 2x ESC power pads
- Current Senor: 104A, 3.3V ADC, Scale 317

BEC 5V output

- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps, Max.3A

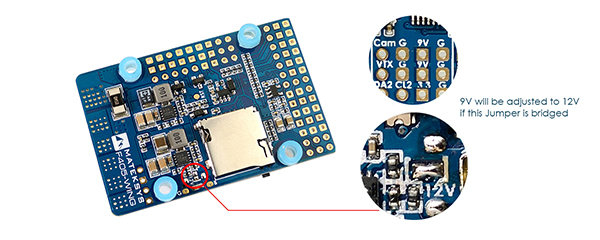

- 12V option with Jumper pad

BEC Vx output

- Designed for Servos

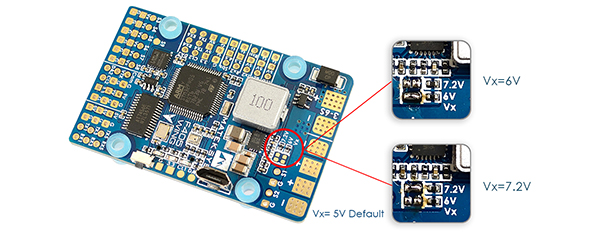

- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 5 Amps, Max.6A
- Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)

BEC 3.3V output

- Designed for Baro / Compass module and Spektrum RX
- Linear Regulator
- Continuous current: 500mA

Physical

- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 56 x 36 x 13 mm
- Weight: 25g

所含附件：

1 x Matek 飞控 F405-WING
3 x 排针
